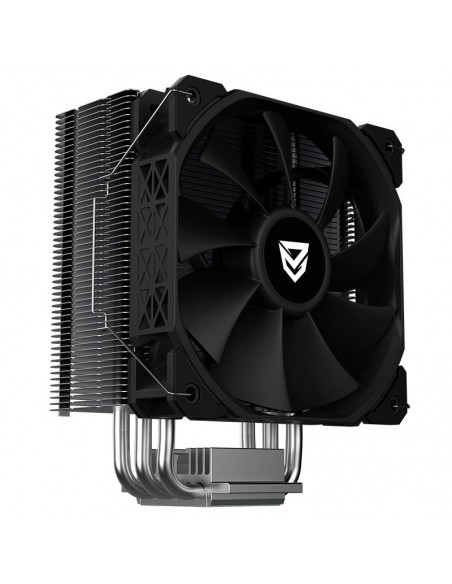

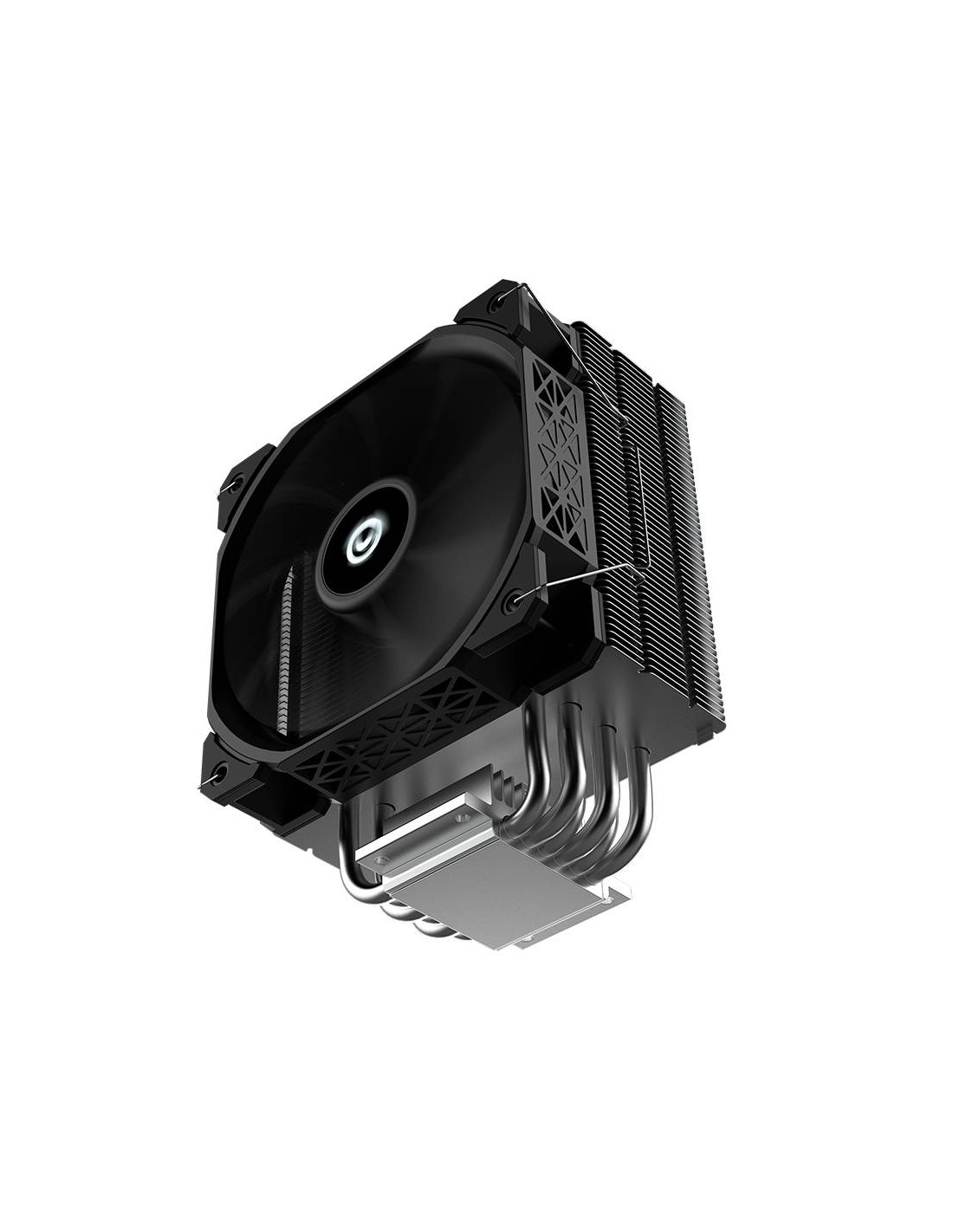

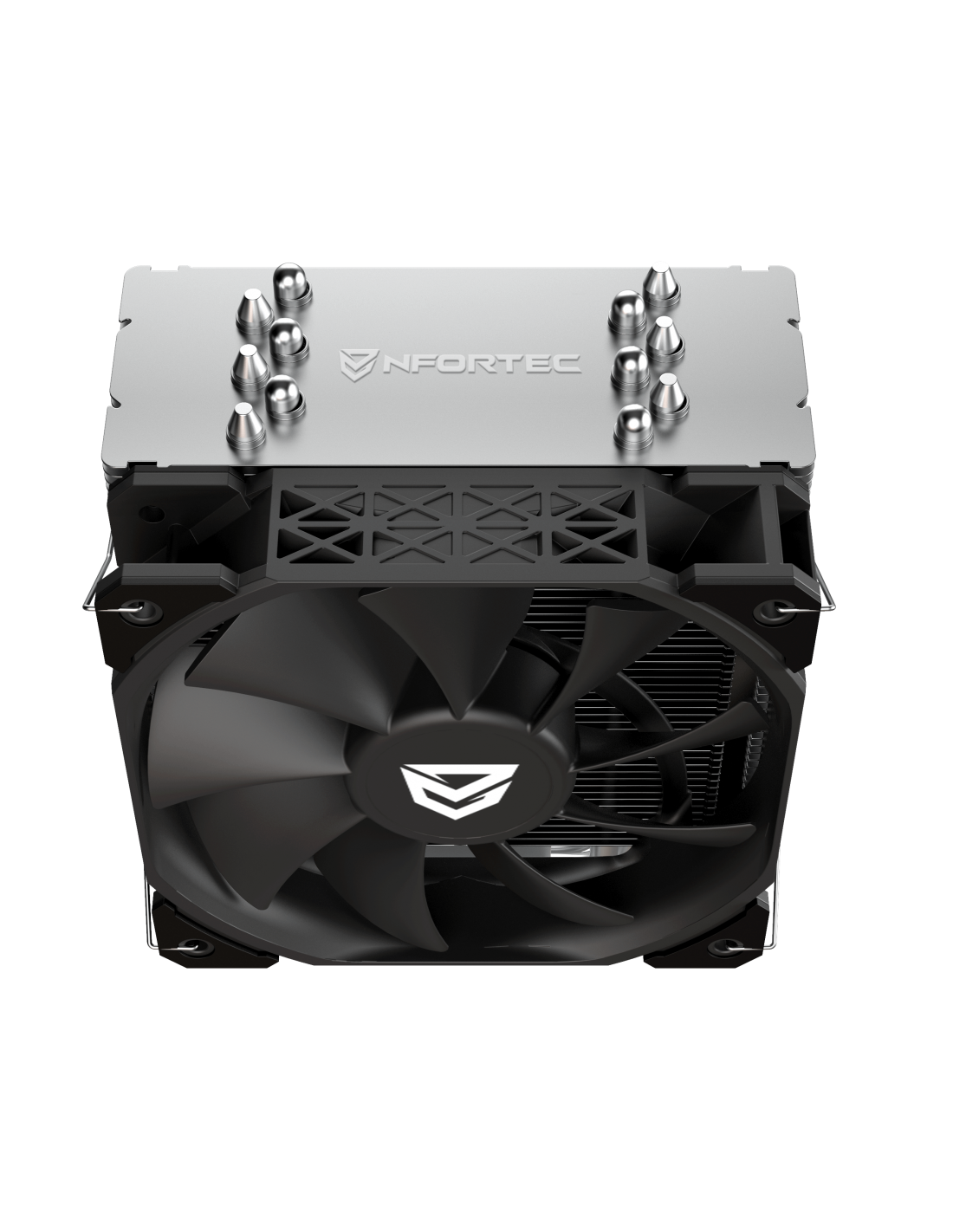

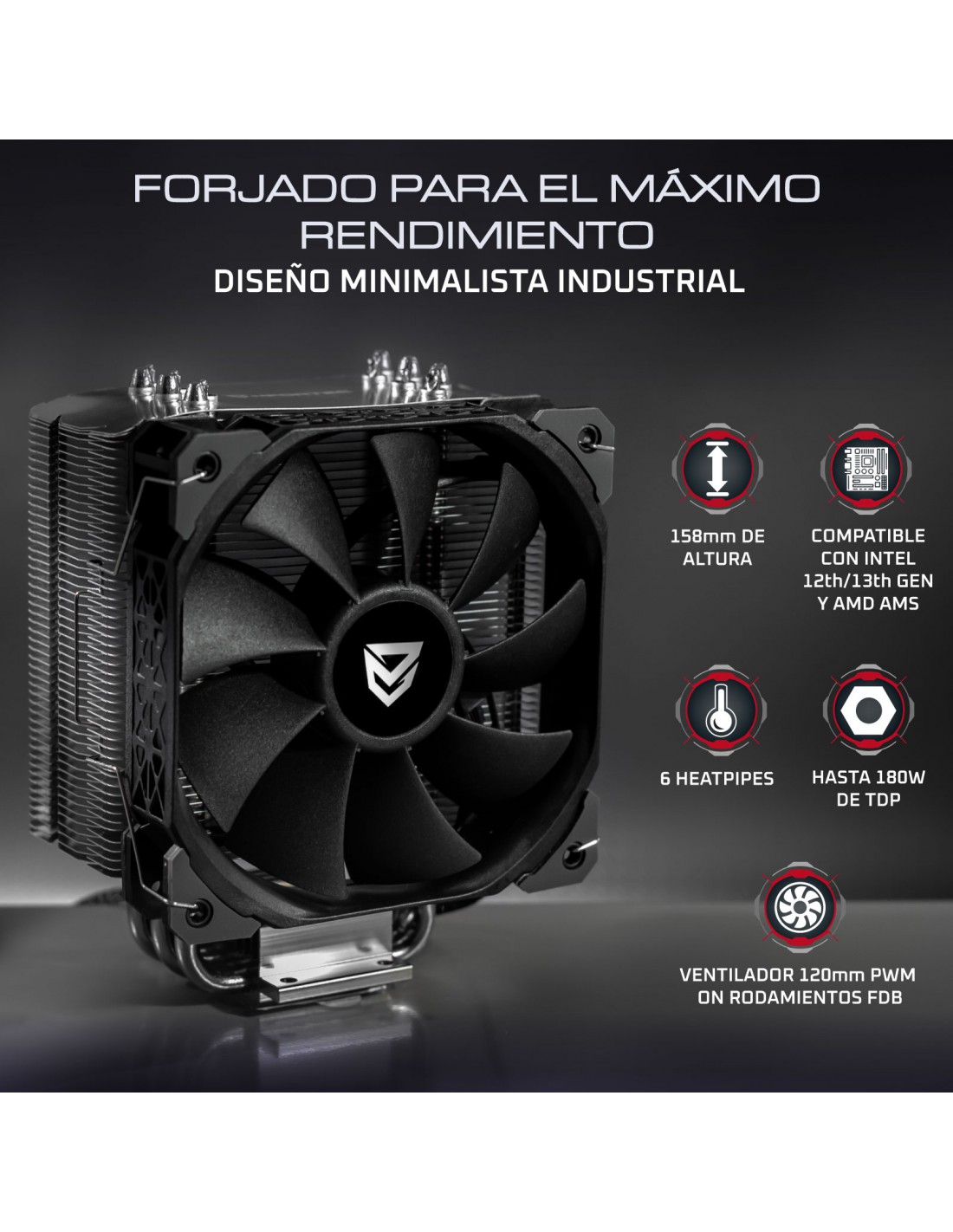

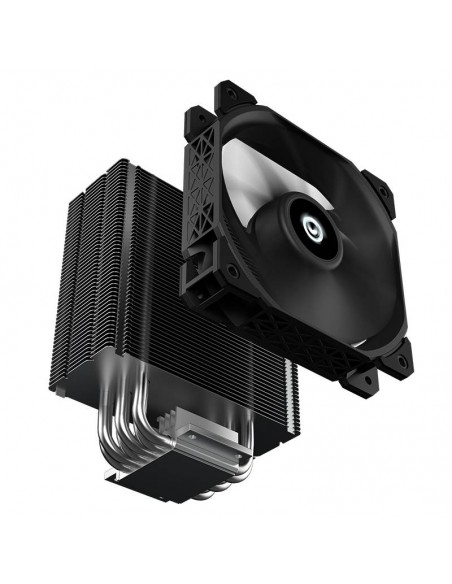

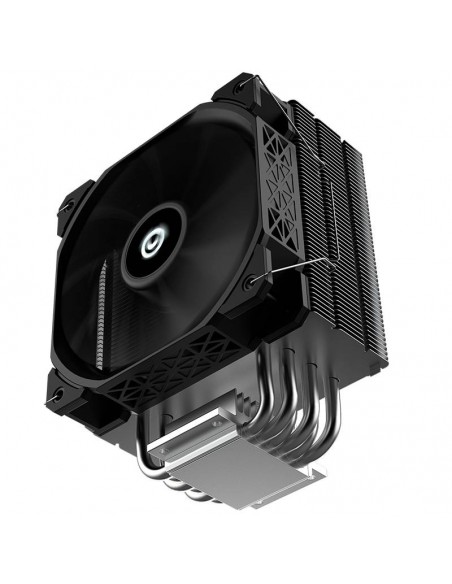

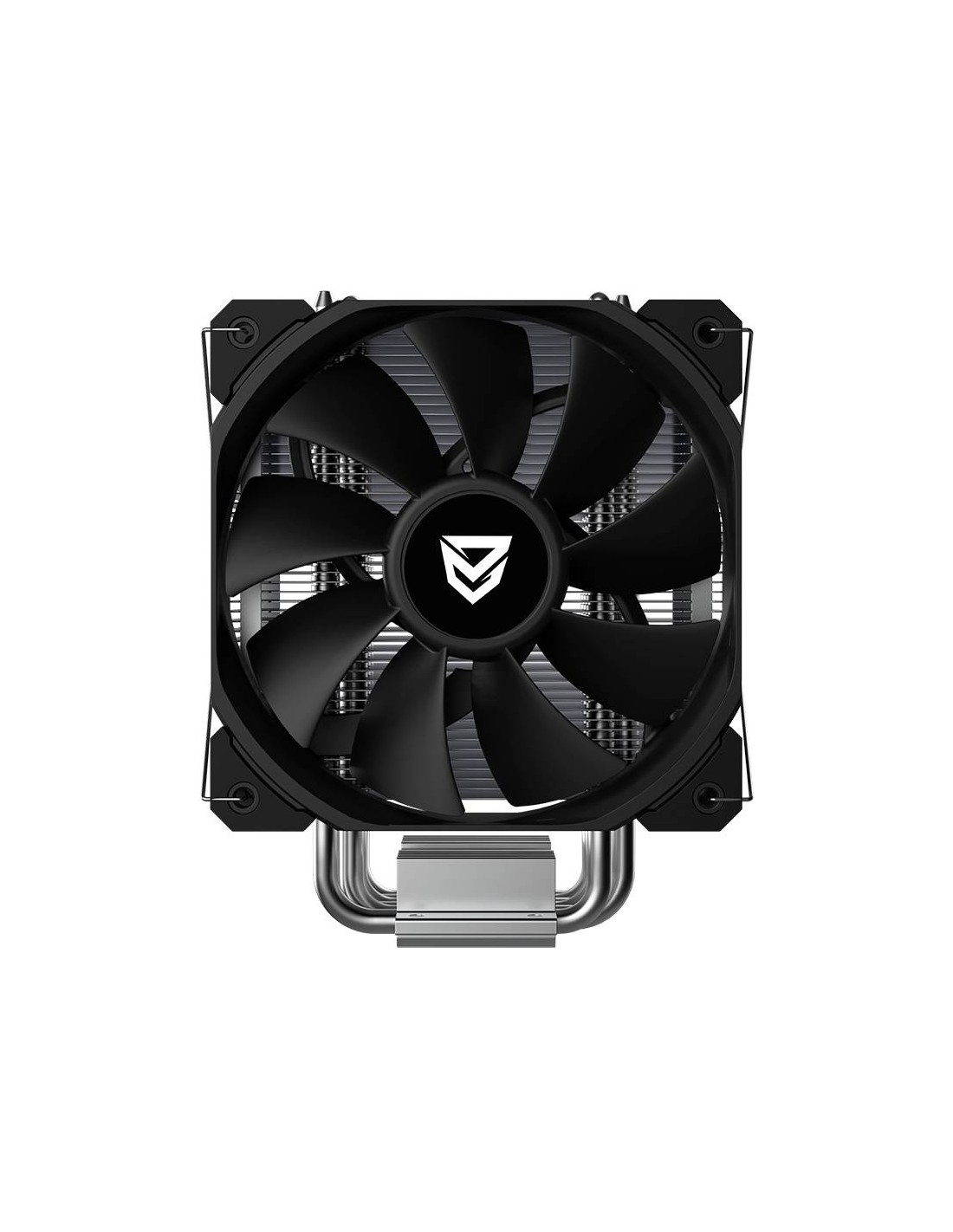

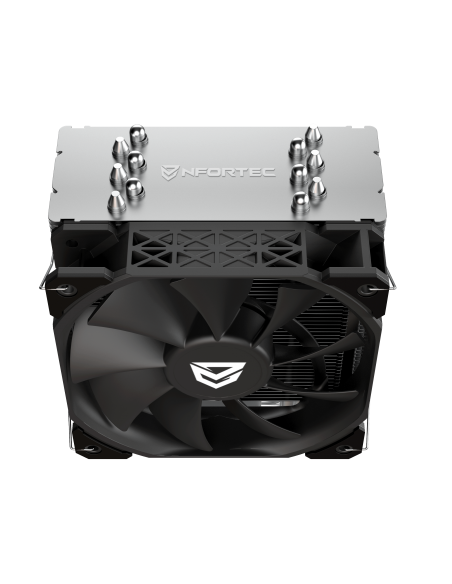

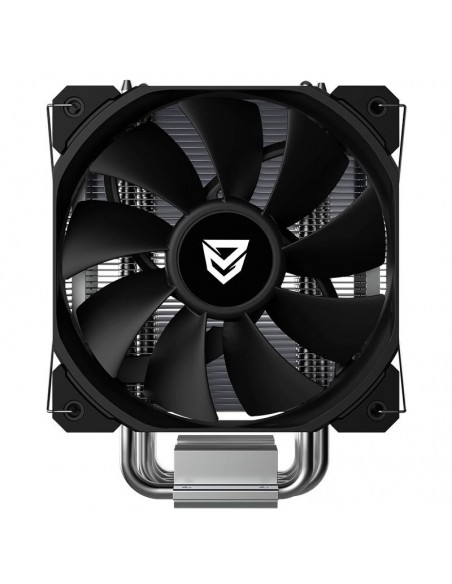

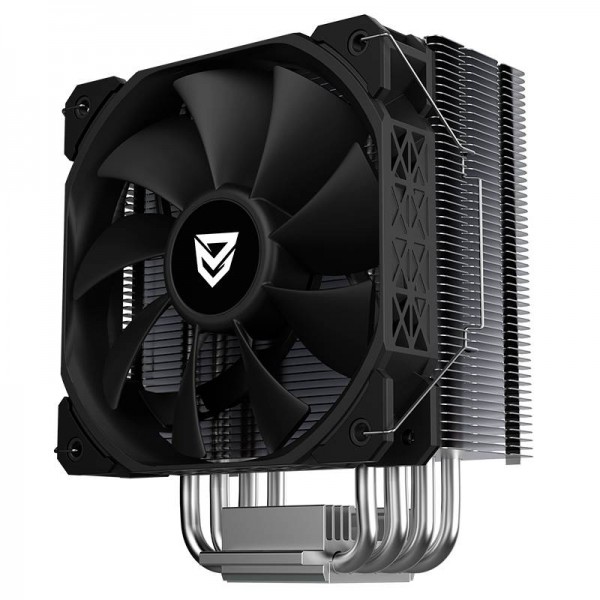

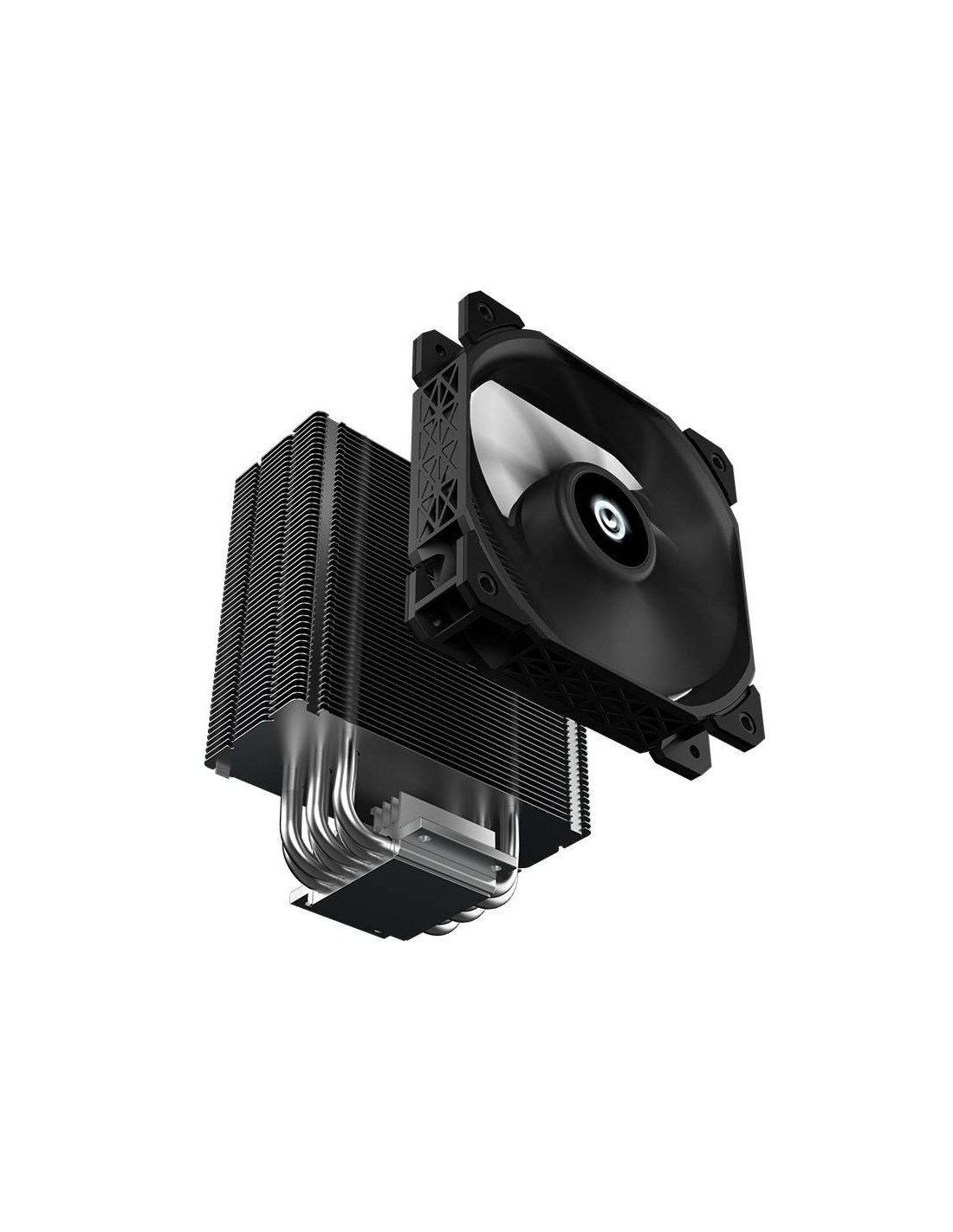

Nfortec AEGIR CPU fan 6 pipes 120mm PWM - FBA

High-performance CPU air heatsink

The new heatsink Nfortec Aegir stands out for its high performance and cooling capacity. It is compatible with AMD and Intel and features a compact size for greater versatility. Enjoy its hydraulic bearing ventilation and be amazed by its up to 180w TDP max. Will it be the new heatsink for your gaming tower?

100% secure payments

It takes care of everything

Heatsink for PC Nfortec Aegir has been designed and manufactured exclusively to support the most powerful and demanding processors without the need for liquid cooling systems.

Keep cool

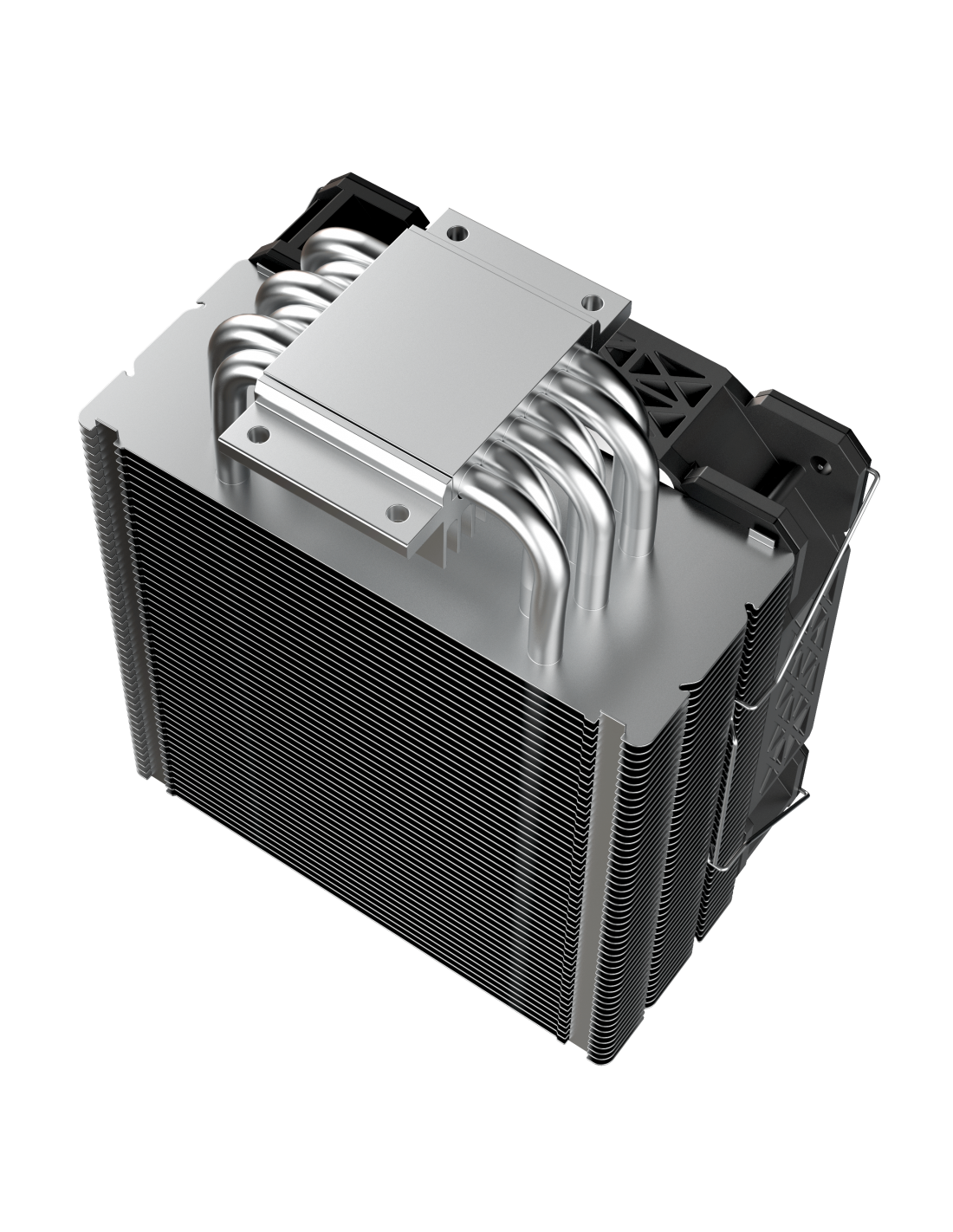

CPU heatsink Nfortec Aegir offers a dissipation capacity of up to 180W TDP max. which it achieves thanks to its 6 U-shaped mirrored copper tubes and the contact base processed with CNC cutting to ensure the best precision in the most important area of the heatsink.

More power, quieter

The air heatsink Nfortec Aegir includes a high performance fan with PWM function to manage the power curve of generated air. Its hydraulic bearings will offer less friction for less noise generated and longer life due to less wear and tear.

Compatible with all

Aegir fits virtually any configuration thanks to its compact dimensions of 158mm x 122mm x 76mm. You will be able to install the Aegir heatsink on virtually any Intel and AMD processor, since thanks to its fastening system, it is compatible with a long list of sockets. Its elegant, simple and timeless design makes it perfect for any configuration or setup you decide to mount.

Model	AEGIR
COMPATIBLE	Intel → 775 / 115X/ 1366 /1200
COMPATIBLE	AMD → AM4/FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
Dimensions	158mm x 122mm x 76mm
Weight	0,65Kg
Dimensions Fan	120mm x 120mm x 25mm
Maximum speed (RPM)	800 - 1800 RPM ± 10%
Air flow rate (airflow)	73.6 CFM±10%
Static pressure	2.02mm/H2O±10%
Noise generated	14~31dB(A)±10%
Bearing type	FDB (Hydraulic bearings )
Estimated useful life	100.000h
Heat sink tubes	6 tubes
TDP max	180W
PWM	Yes
Voltage	12V 0.3A ±10% 12V 0.3A ±10% 12V 0.3A ±10
Connectors	12v 4pin power supply (PWM)
Heatsink material	Aluminum, Copper
Content	1x AEGIR 1x Installation kit for Intel/AMD with thermal paste included

Type of Refrigeration: Air
CPU height: 158mm
Fans: x1
Cooling capacity max.: 180W

Brand Nfortec

Reference NF-CPU-AEGIR-FBA

Model	AEGIR
COMPATIBLE	Intel → 775 / 115X/ 1366 /1200
COMPATIBLE	AMD → AM4/FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
Dimensions	158mm x 122mm x 76mm
Weight	0.65Kg
Fan Dimensions	120mm x 120mm x 25mm
Maximum speed (RPM)	800 - 1800 RPM ± 10%
Airflow	73.6 CFM±10% AIRFLOW
Static pressure	2.02mm/H2O±10% Static Pressure
Noise generated	14~31dB(A)±10% Noise generated
Bearing type	FDB (Hydraulic Bearing)
Estimated life of use	100.000h
Heat sink tubes	6 tubes
TDP max	180W
PWM	Yes
Voltage	12V 0.3A ±10% ±10
Connectors	12v 4pin power supply (PWM)
Heatsink material	Aluminum, Copper
Contents	1x AEGIR 1x Installation set for Intel/AMD with thermal paste included

DOWNLOAD MANUAL
