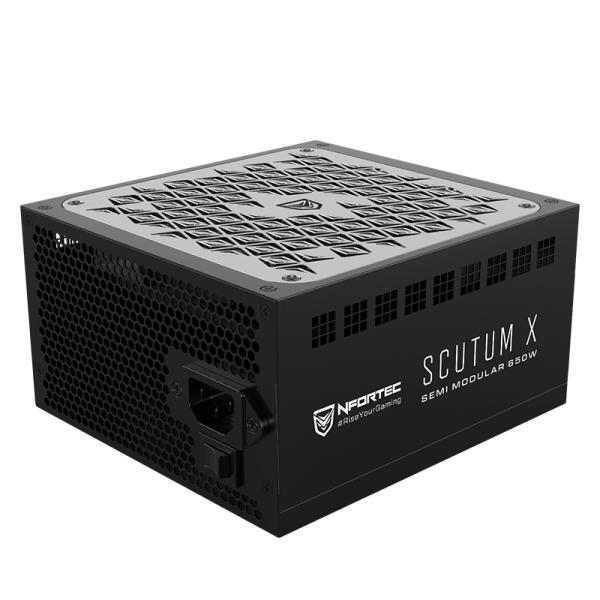

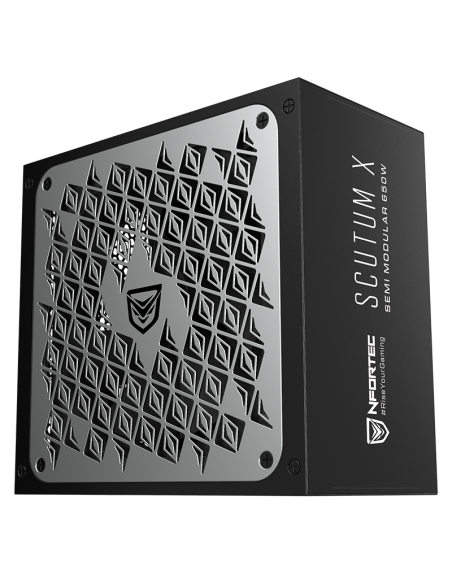

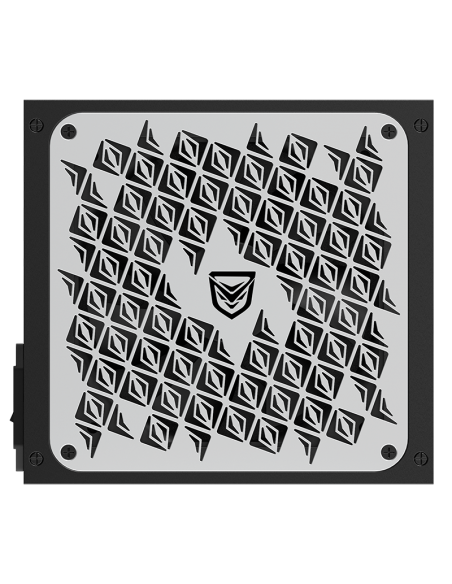

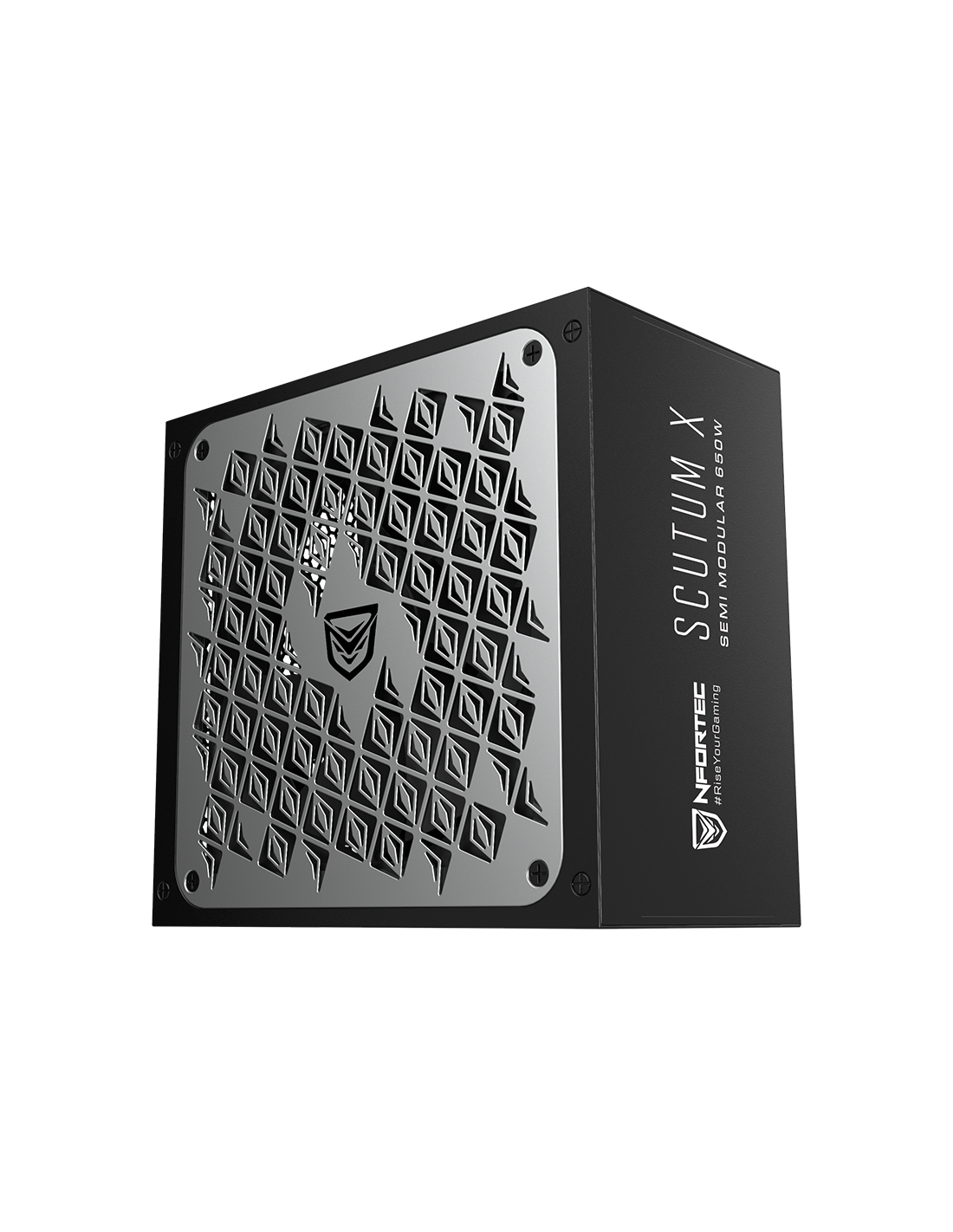

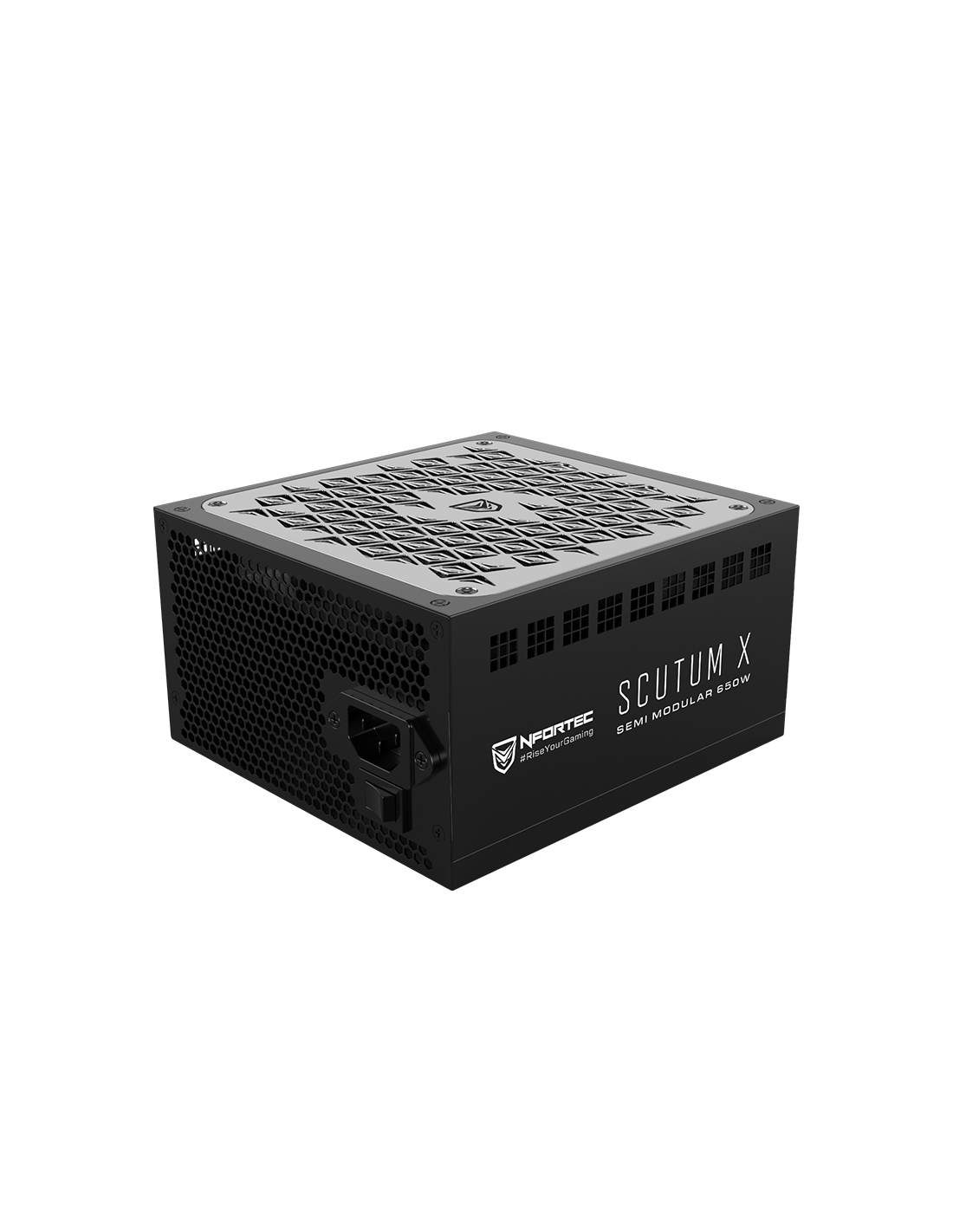

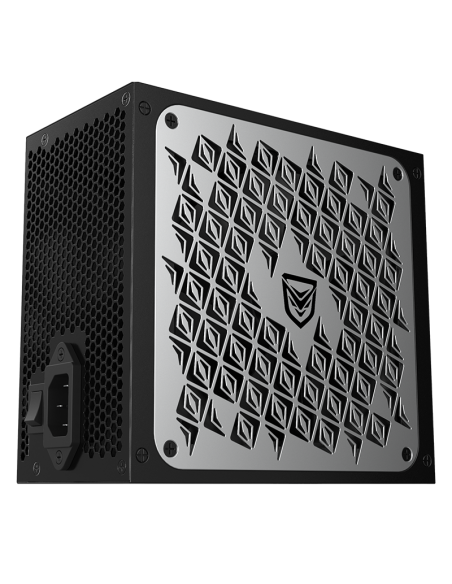

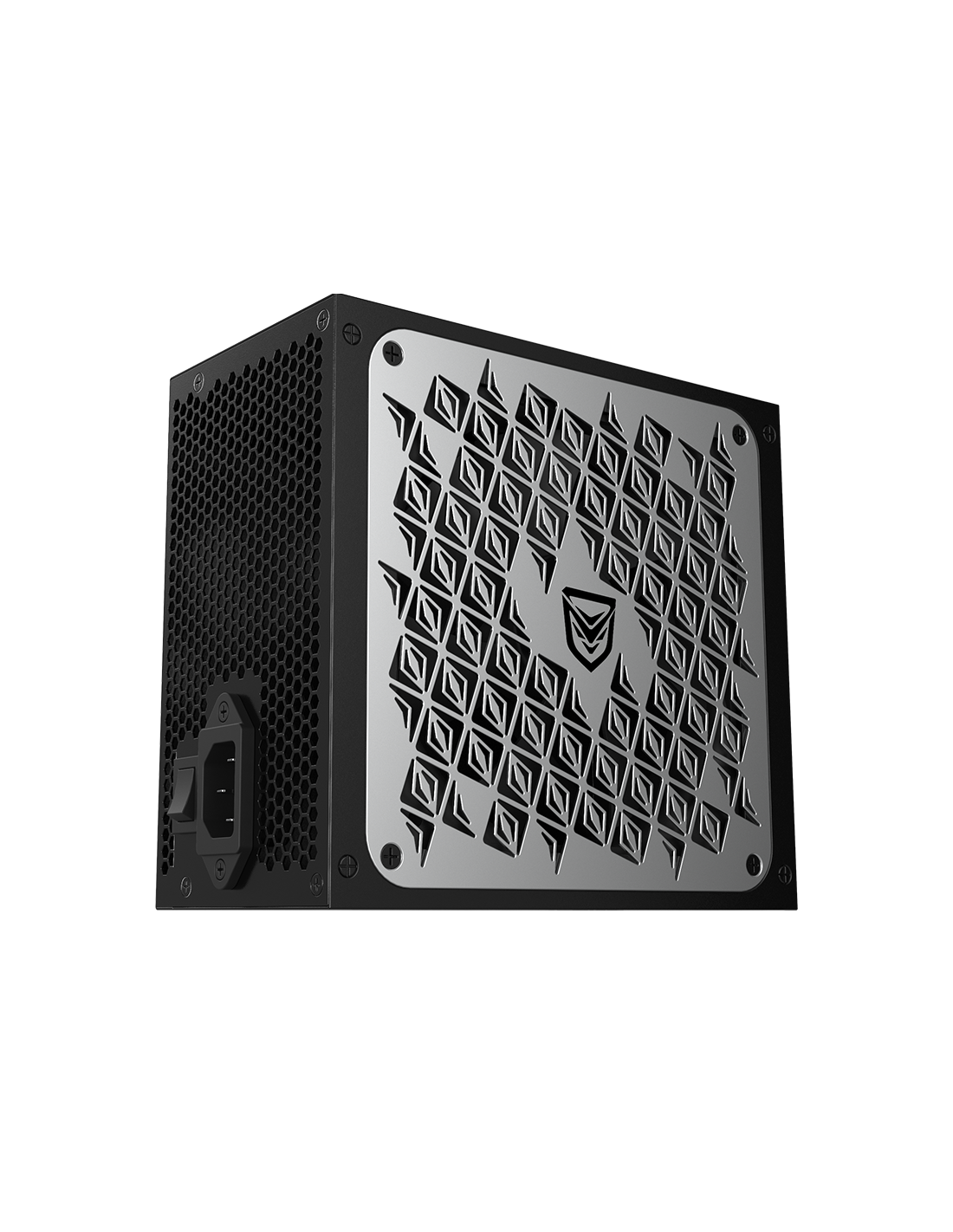

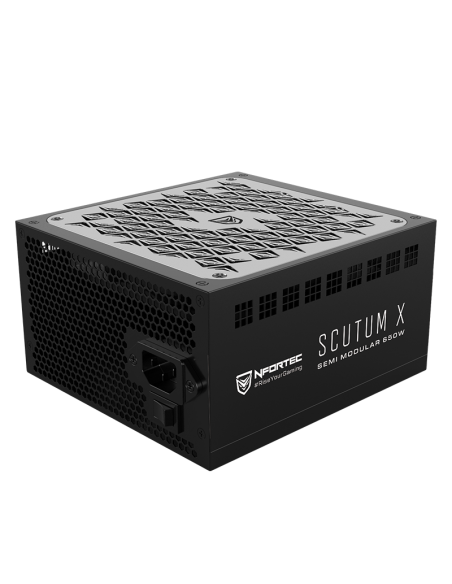

Nfortec SCUTUM X SemiMod 850W PC Power Supply 80+ Bronze

PC power supply 80+ Bronze seme modular

The Scutum X power supply series is now extended with the seme modular model, also available in: 650, 750 and 850W. Scutum X semi modular is 80+ Bronze certified and guarantees optimized cooling for your computer. Connect only the cables you need and keep your tower tidy and visually clean

Power

100% secure payments

Cleanliness in wiring installation

The new power supply Nfortec Scutum X semi modular comes to meet the requirements of the new generations of computers, with the ability to maintain its performance at 100% with an energy efficiency of over 85%. The Scutum X semi-modular PC power supply arrives with improved aesthetics adapted to the trends, with all the improvements that make it a safe bet to power any setup. Unlike its sister Scutum X, the semi-modular version offers more versatility in cable management, allowing you to connect only what you need and keep a cleaner installation.

Sustainable and professional performance

The new Scutum X semi-modular power supply offers you a range of 3 versions (650W, 750W and 850W) so you can choose the one that best suits your configuration. Thanks to its 80+ Bronze certification you will be assured of peak performance with an efficiency of over 85%, so you will not only be giving better power quality to your components but you will also save on power consumption.

The semi-modular power supply you've been waiting for

The semi-modular power supply for PCs Nfortec Scutum X has semi-modular wired connections with mesh protection: 1 connection for 24pin motherboard and 2 connections for CPU fixed to the power supply and 2 for graphics card or PCIE, 5 SATA connections and 2 modular MOLEX connections (+ 1 additional for FLOPPY).

Protect your computer

The design of our new semi-modular PC power supply has been completely revamped. Scutum X semi modular is 80+ Bronze certified, ensuring up to 85% efficiency. We have improved its internal components to reinforce safety and integrity over time by using capacitors that perform at a high level. If to all these modifications and improvements we add a cooling through a 140mm fan that dissipates heat through the front metal mesh, we will find ourselves in front of one of the semi-modular PC power supplies that will transmit more security to your set-up.

MODEL	SCUTUM X 850W
Dimensions	153mm x 81mm x 160mm
Format	ATX
Weight	1,65Kg
Ports and interfaces	Mainboard power supply: 20+4 pin ATX, Length 550mm Fixed
	EPS power connector (8-pin), Length 680mm Fixed
	PCI Express power connectors (6 + 2 pin): 2, Length 500mm Modular
	SATA power connectors: 7, Length 450mm Modular
	Power Connectors (4 pin) peripheral (Molex): 2, Length 450mm Modular
	Additional S4P connector (FLOPPY)
Type of Wiring	Semi modular
Energy Control	Total power: 850 W
	AC input voltage: 200 - 240 V
	AC input frequency: 47-63 Hz
	Input current: 5 A
	Combined power (3.3 V): 90 W
	Combined power (+12 V): 768 W
	Combined power (+5 V): 90 W
	Combined power (-12V): 18.5 W
	Combined power (+5 VSB): 18,5 W
	Maximum output current (+3.3V): 15 A
	Maximum output current (+12V): 64 A
	Maximum output current (+5V): 15 A
	Maximum output current (-12V): 0,5 A
	Maximum output current (+5Vsb): 2.5 A
Protections	Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP)
80 PLUS Certification	80+ BRONZE (Efficiency 85%)
Cooling	Fan diameter: 14 cm
	Number of fans: 1 Fan
	Fan location: Top
	Cooling type: Active
Content included	SCUTUM X (1)
	QR Manual (1)
	Power cable (1)
	Installation screws (4)

Title Aliexpress: Nfortec SCUTUM X SemiMod 850W PC Power Supply 80+ Bronze
Wattage: 850W
Wiring: Semi Modular
80+ Certification: 80+ Bronze
CPU Cables: x2
PCIE cables: x2

Brand Nfortec

Reference NF-PSU-SCUTUMX-SM-850W

MODEL	SCUTUM X 850W
Dimensions	153mm x 81mm x 160mm
Format	ATX
Weight	1.65Kg
Ports and interfaces	Power supply for motherboard: 20+4 pin ATX, Length 550mm Fixed
	EPS Power Connector (8-pin), Length 680mm Fixed
	PCI Express power connectors (6+2 pin): 2, Length 500mm Modular
	SATA power connectors: 7, Length 450mm Modular
	Power connectors (4 pin) peripheral (Molex): 2, Length 450mm Modular
	Additional S4P connector (FLOPPY)
Wiring Type	Semi modular
Power Control	Total power: 850 W
	AC input voltage: 200 - 240 V
	AC input frequency: 47-63 Hz
	Input current: 5 A
	Combined power (3.3 V): 90 W
	Combined power (+12 V): 768 W
	Combined power (+5 V): 90 W
	Combined power (-12V): 18.5 W
	Combined power (+5 VSB): 18.5 W
	Maximum output current (+3.3V): 15 A
	Maximum output current (+12V): 64 A
	Maximum output current (+5V): 15 A
	Maximum output current (-12V): 0.5 A
	Maximum output current (+5Vsb): 2.5 A
Protections	Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP)
80 PLUS Certification	80+ BRONZE (Efficiency 85%)
Cooling	Fan diameter: 14 cm
	Number of fans: 1 Fan
	Fan Location: Top
	Cooling Type: Active
Included Contents	SCUTUM X (1)
	QR Manual (1)
	Power cable (1)
	Installation screws (4)

No reviews

Clean wiring installation

The new power supply Nfortec Scutum X semi modular comes to meet the requirements of the new generations of computers, with the ability to maintain its performance at 100% with an energy efficiency of over 85%. The Scutum X semi modular PC power supply arrives with improved aesthetics adapted to the trends, with all the improvements that make it a safe bet to power any setup. Unlike its sister Scutum X, the semi-modular version offers more versatility in cable management, allowing you to connect only what you need and keep a cleaner installation.

Sustainable and professional performance

The semi-modular power supply you've been waiting for

The semi-modular power supply for PC Nfortec Scutum X has semi-modular wired connections with mesh protection: 1 24pin motherboard connection and 2 CPU connections fixed to the power supply and 2 for graphics card or PCIE, 5 SATA connections and 2 modular MOLEX connections (+ 1 additional for FLOPPY)

Protect your computer

The design of our new semi-modular PC power supply has been completely renewed. Scutum X semi modular is 80+ Bronze certified, ensuring up to 85% efficiency. We have improved its internal components to reinforce safety and integrity over time by using capacitors that perform at a high level. If to all these modifications and improvements we add a cooling through a 140mm fan that dissipates heat through the front metal mesh, we will find ourselves in front of one of the semi-modular PC power supplies that will transmit more security to your set-up
