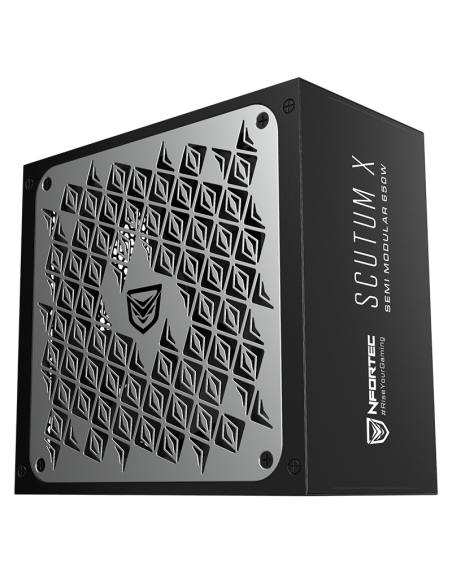

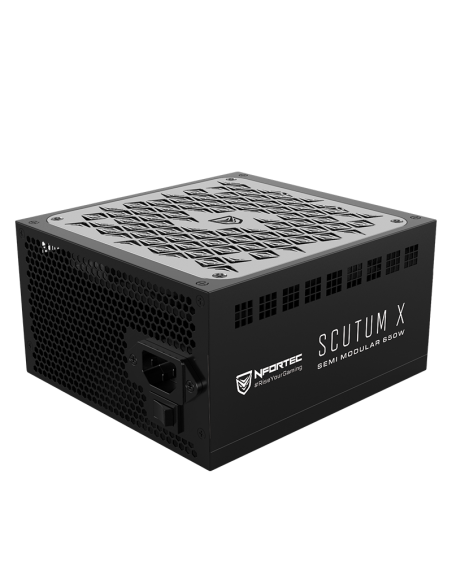

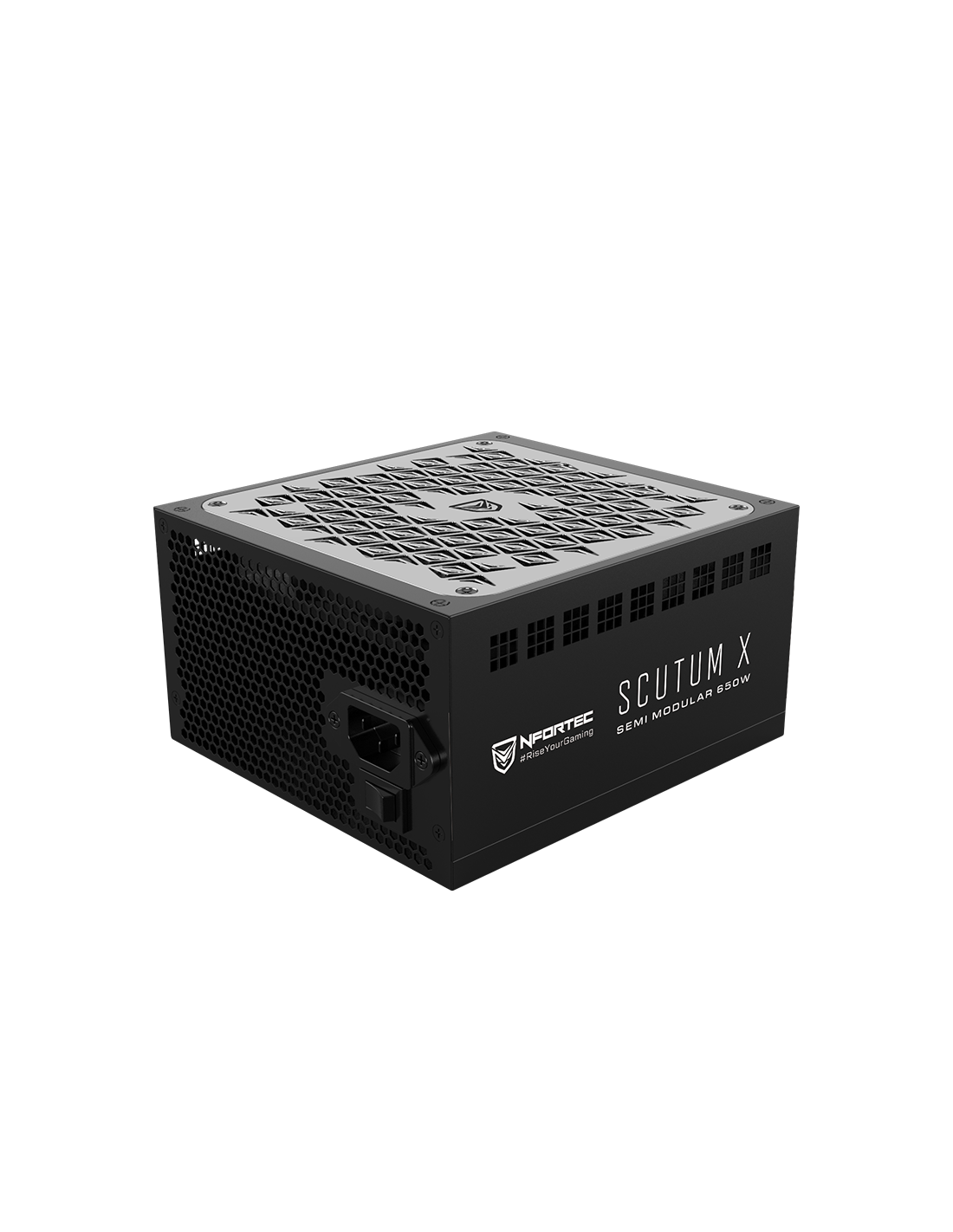

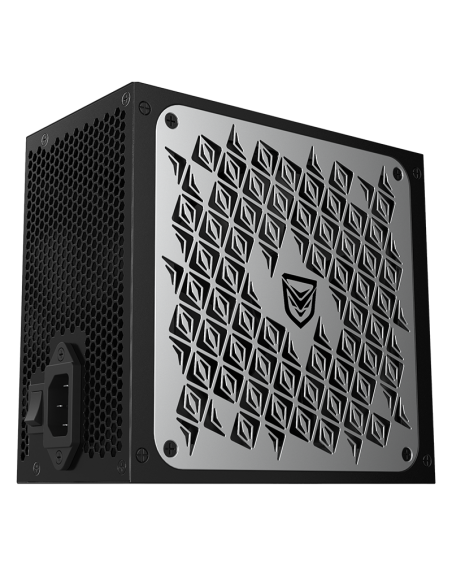

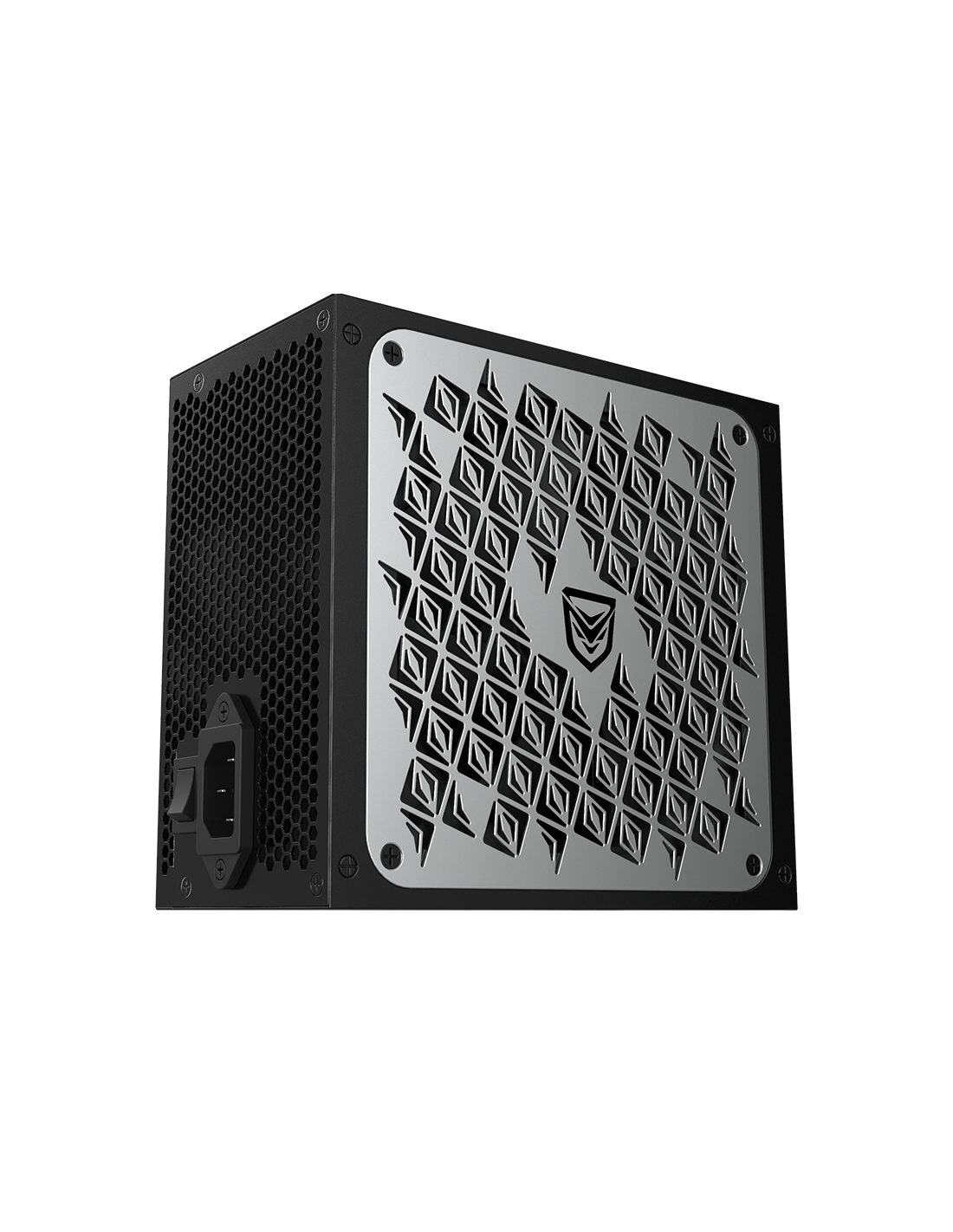

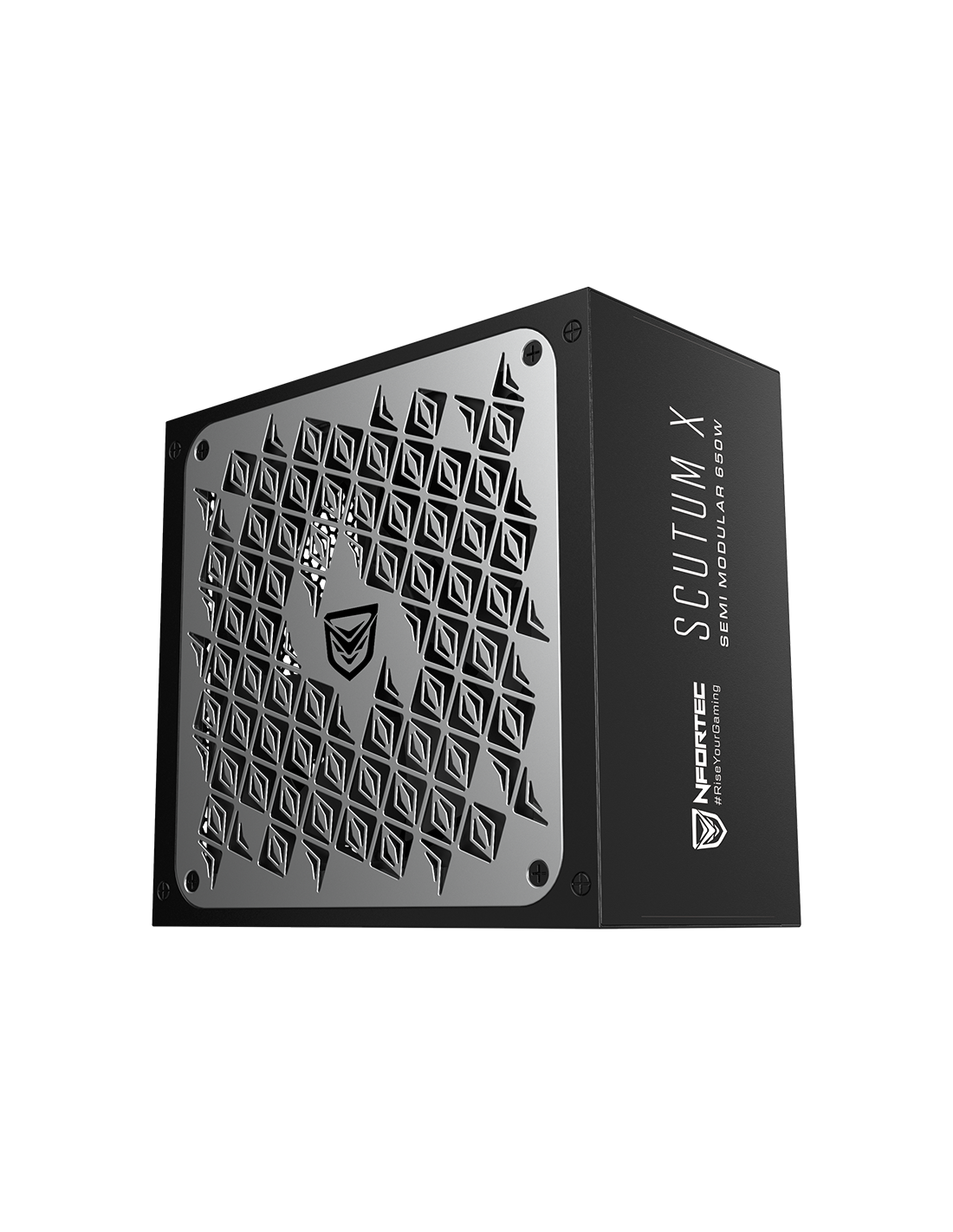

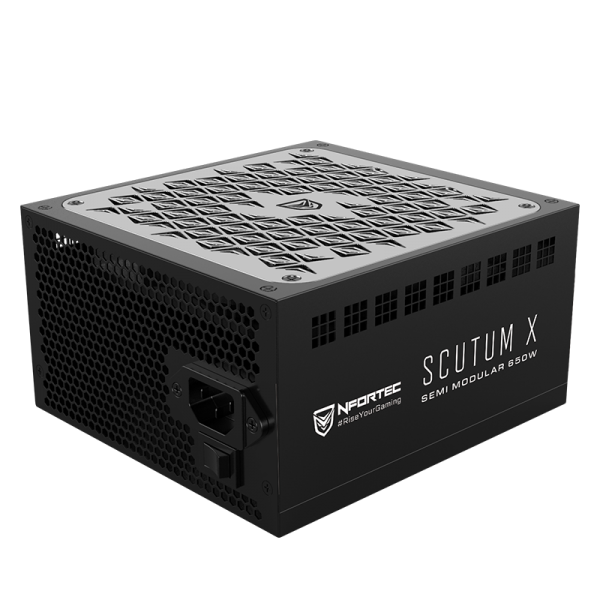

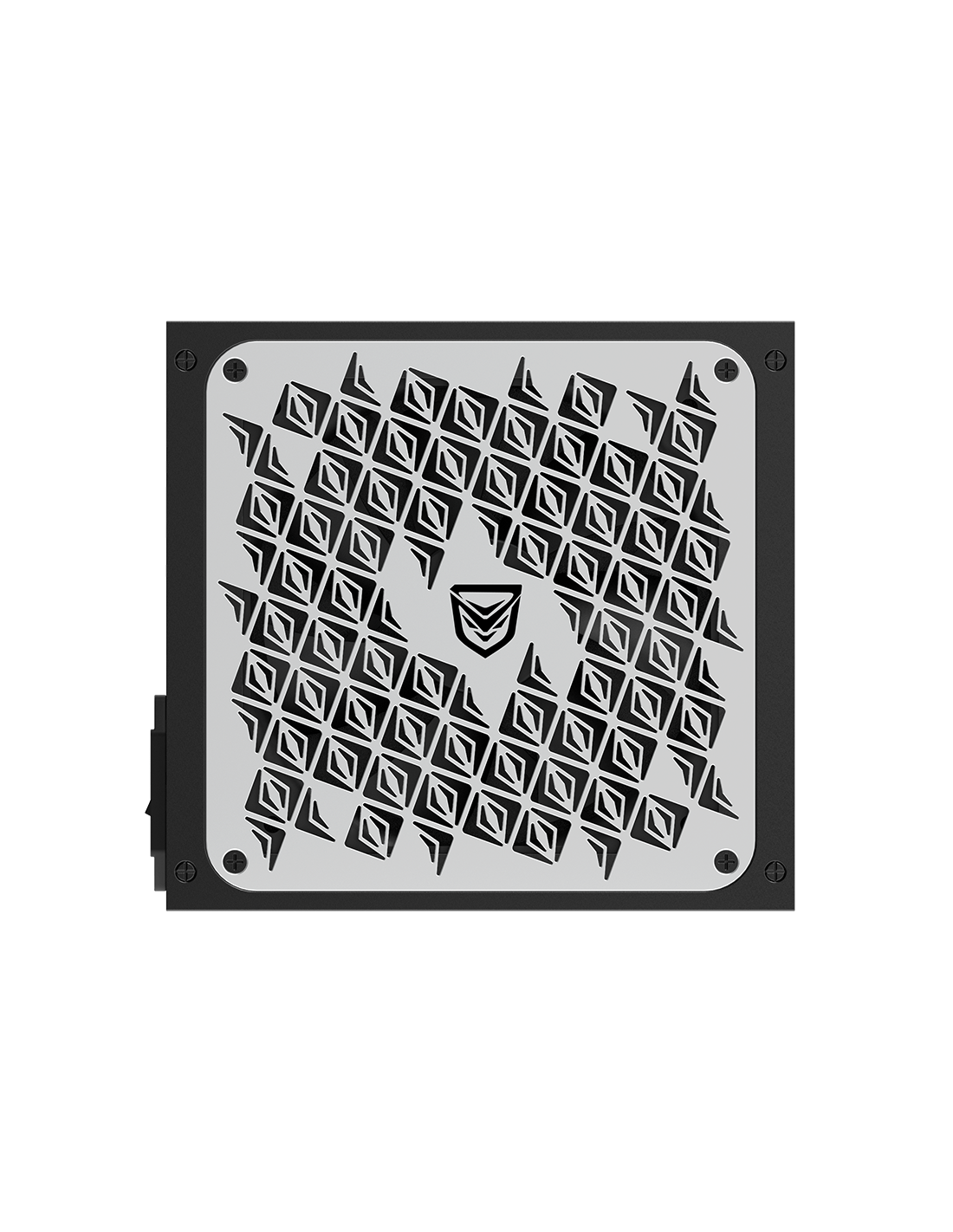

Nfortec SCUTUM X SemiMod 850W PC Power Supply 80+ Bronze
PC power supply 80+ Bronze seme modular
The Scutum X power supply series is now extended with the seme modular model, also available in: 650, 750 and 850W. Scutum X semi modular is 80+ Bronze certified and guarantees optimized cooling for your computer. Connect only the cables you need and keep your tower tidy and visually clean
Power
100% secure payments
Cleanliness in wiring installation
The new power supply
Sustainable and professional performance
The new Scutum X semi-modular power supply offers you a range of 3 versions (650W, 750W and 850W) so you can choose the one that best suits your configuration. Thanks to its 80+ Bronze certification you will be assured of peak performance with an efficiency of over 85%, so you will not only be giving better power quality to your components but you will also save on power consumption.
The semi-modular power supply you've been waiting for
The semi-modular power supply for PCs
Protect your computer

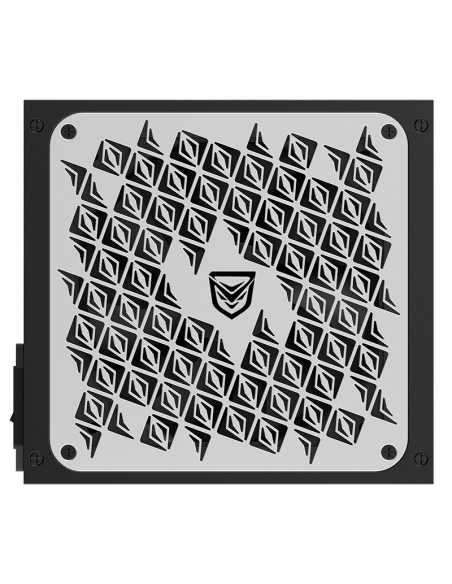

The design of our new semi-modular PC power supply has been completely revamped. Scutum X semi modular is 80+ Bronze certified, ensuring up to 85% efficiency. We have improved its internal components to reinforce safety and integrity over time by using capacitors that perform at a high level. If to all these modifications and improvements we add a cooling through a 140mm fan that dissipates heat through the front metal mesh, we will find ourselves in front of one of the semi-modular PC power supplies that will transmit more security to your set-up.
| MODEL | SCUTUM X 850W |
| Dimensions | 153mm x 81mm x 160mm |
| Format | ATX |
| Weight | 1,65Kg |
Ports and interfaces | Mainboard power supply: 20+4 pin ATX, Length 550mm Fixed |
| EPS power connector (8-pin), Length 680mm Fixed | |
| PCI Express power connectors (6 + 2 pin): 2, Length 500mm Modular | |
| SATA power connectors: 7, Length 450mm Modular | |
| Power Connectors (4 pin) peripheral (Molex): 2, Length 450mm Modular | |
| Additional S4P connector (FLOPPY) | |
| Type of Wiring | Semi modular |
Energy Control | Total power: 850 W |
| AC input voltage: 200 - 240 V | |
| AC input frequency: 47-63 Hz | |
| Input current: 5 A | |
| Combined power (3.3 V): 90 W | |
| Combined power (+12 V): 768 W | |
| Combined power (+5 V): 90 W | |
| Combined power (-12V): 18.5 W | |
| Combined power (+5 VSB): 18,5 W | |
| Maximum output current (+3.3V): 15 A | |
| Maximum output current (+12V): 64 A | |
| Maximum output current (+5V): 15 A | |
| Maximum output current (-12V): 0,5 A | |
| Maximum output current (+5Vsb): 2.5 A | |
| Protections | Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP) |
| 80 PLUS Certification | 80+ BRONZE (Efficiency 85%) |
Cooling | Fan diameter: 14 cm |
| Number of fans: 1 Fan | |
| Fan location: Top | |
| Cooling type: Active | |
Content included | SCUTUM X (1) |
| QR Manual (1) | |
| Power cable (1) | |
| Installation screws (4) |
- Title Aliexpress
- Nfortec SCUTUM X SemiMod 850W PC Power Supply 80+ Bronze
- Wattage
- 850W
- Wiring
- Semi Modular
- 80+ Certification
- 80+ Bronze
- CPU Cables
- x2
- PCIE cables
- x2
NF-PSU-SCUTUMX-SM-850W
| MODEL | SCUTUM X 850W |
| Dimensions | 153mm x 81mm x 160mm |
| Format | ATX |
| Weight | 1.65Kg |
Ports and interfaces | Power supply for motherboard: 20+4 pin ATX, Length 550mm Fixed |
| EPS Power Connector (8-pin), Length 680mm Fixed | |
| PCI Express power connectors (6+2 pin): 2, Length 500mm Modular | |
| SATA power connectors: 7, Length 450mm Modular | |
| Power connectors (4 pin) peripheral (Molex): 2, Length 450mm Modular | |
| Additional S4P connector (FLOPPY) | |
| Wiring Type | Semi modular |
Power Control | Total power: 850 W |
| AC input voltage: 200 - 240 V | |
| AC input frequency: 47-63 Hz | |
| Input current: 5 A | |
| Combined power (3.3 V): 90 W | |
| Combined power (+12 V): 768 W | |
| Combined power (+5 V): 90 W | |
| Combined power (-12V): 18.5 W | |
| Combined power (+5 VSB): 18.5 W | |
| Maximum output current (+3.3V): 15 A | |
| Maximum output current (+12V): 64 A | |
| Maximum output current (+5V): 15 A | |
| Maximum output current (-12V): 0.5 A | |
| Maximum output current (+5Vsb): 2.5 A | |
| Protections | Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP) |
| 80 PLUS Certification | 80+ BRONZE (Efficiency 85%) |
Cooling | Fan diameter: 14 cm |
| Number of fans: 1 Fan | |
| Fan Location: Top | |
| Cooling Type: Active | |
Included Contents | SCUTUM X (1) |
| QR Manual (1) | |
| Power cable (1) | |
| Installation screws (4) |
No reviews
Clean wiring installation
The new power supply Nfortec Scutum X semi modular comes to meet the requirements of the new generations of computers, with the ability to maintain its performance at 100% with an energy efficiency of over 85%. The Scutum X semi modular PC power supply arrives with improved aesthetics adapted to the trends, with all the improvements that make it a safe bet to power any setup. Unlike its sister Scutum X, the semi-modular version offers more versatility in cable management, allowing you to connect only what you need and keep a cleaner installation.
Sustainable and professional performance
The new Scutum X semi-modular power supply offers you a range of 3 versions (650W, 750W and 850W) so you can choose the one that best suits your configuration. Thanks to its 80+ Bronze certification you will be assured of peak performance with an efficiency of over 85%, so you will not only be giving better power quality to your components but you will also save on energy consumption
The semi-modular power supply you've been waiting for
The semi-modular power supply for PC Nfortec Scutum X has semi-modular wired connections with mesh protection: 1 24pin motherboard connection and 2 CPU connections fixed to the power supply and 2 for graphics card or PCIE, 5 SATA connections and 2 modular MOLEX connections (+ 1 additional for FLOPPY)
Protect your computer
The design of our new semi-modular PC power supply has been completely renewed. Scutum X semi modular is 80+ Bronze certified, ensuring up to 85% efficiency. We have improved its internal components to reinforce safety and integrity over time by using capacitors that perform at a high level. If to all these modifications and improvements we add a cooling through a 140mm fan that dissipates heat through the front metal mesh, we will find ourselves in front of one of the semi-modular PC power supplies that will transmit more security to your set-up
