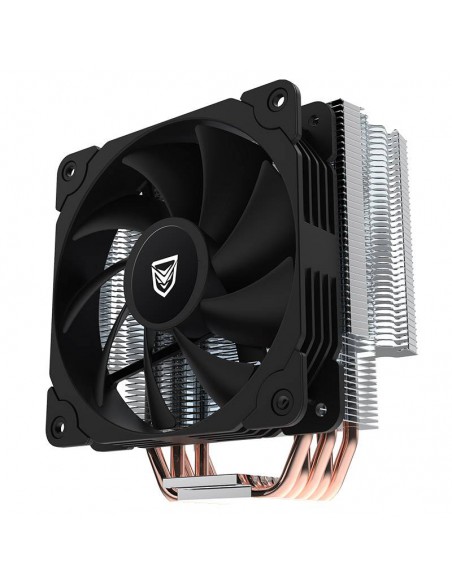

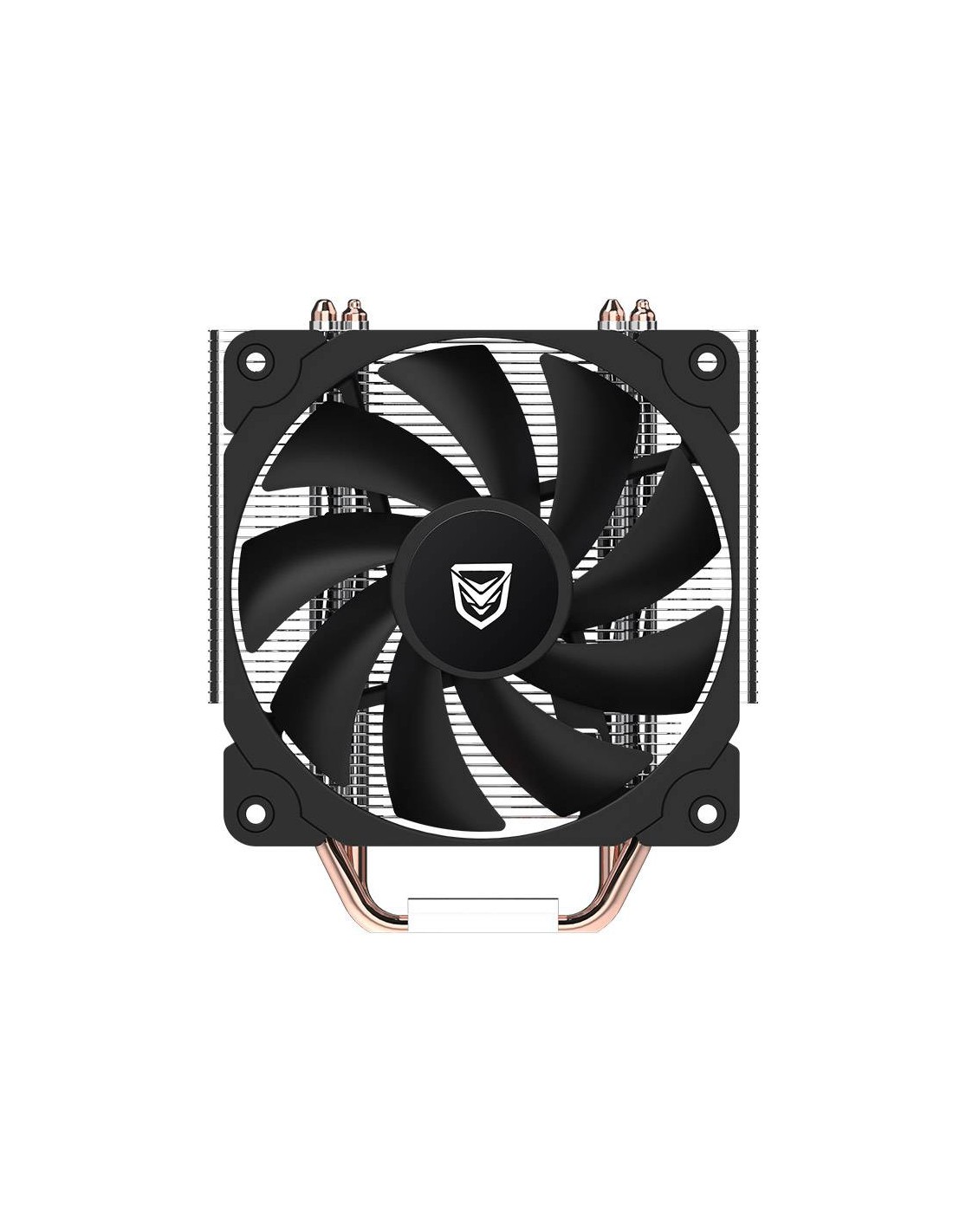

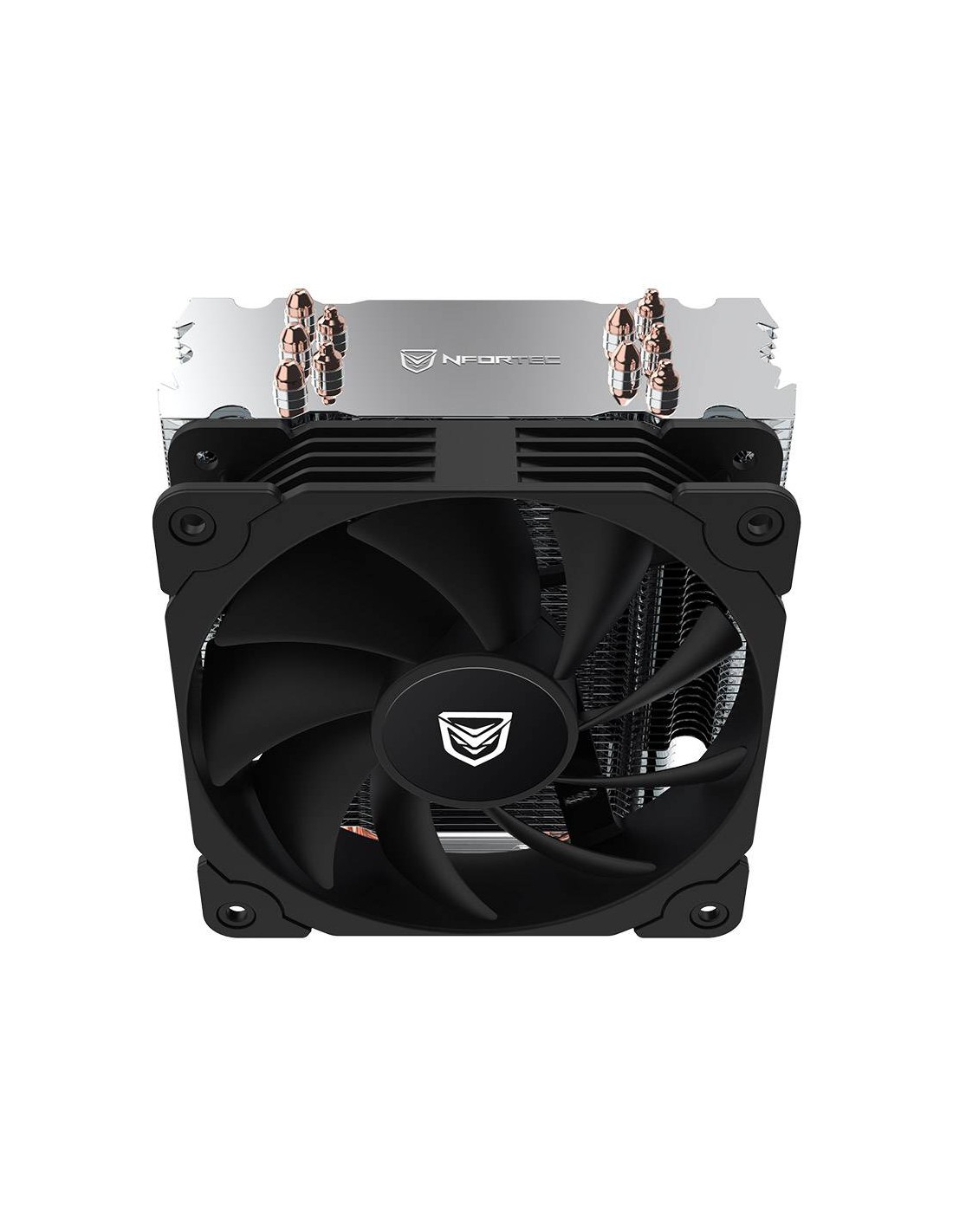

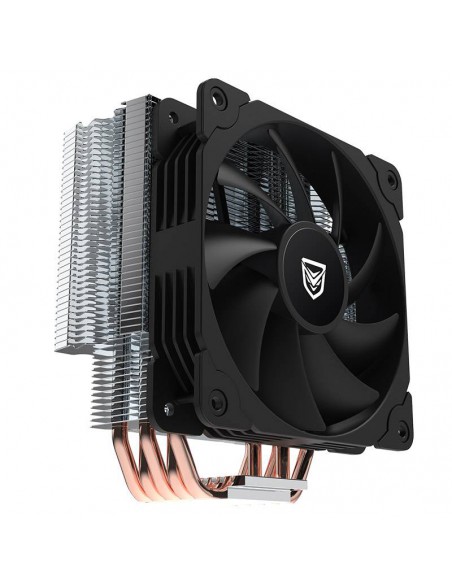

Nfortec Vela X CPU Air Heatsink

1 Reviews

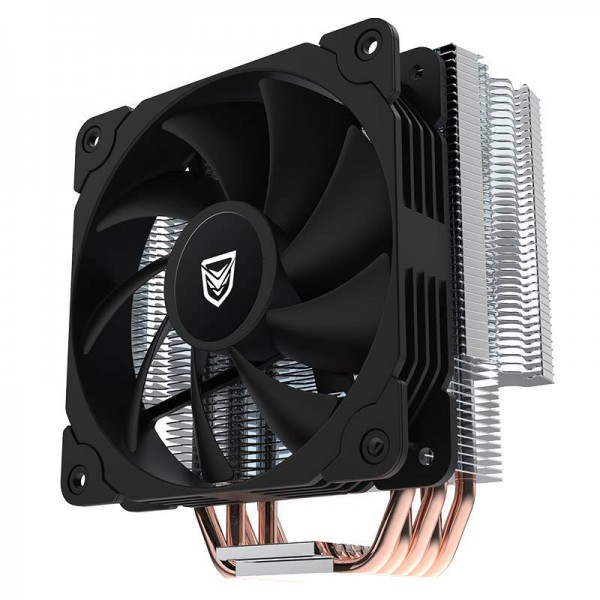

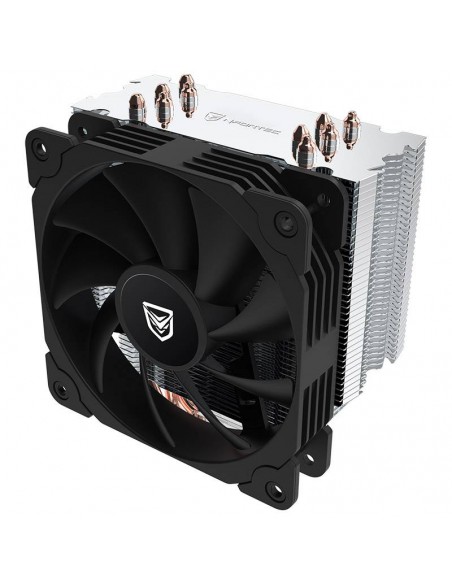

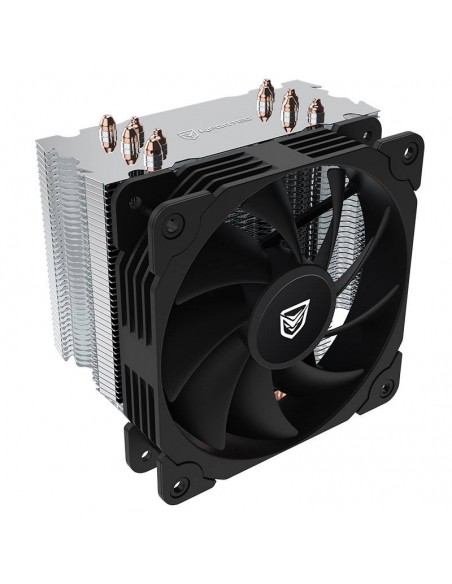

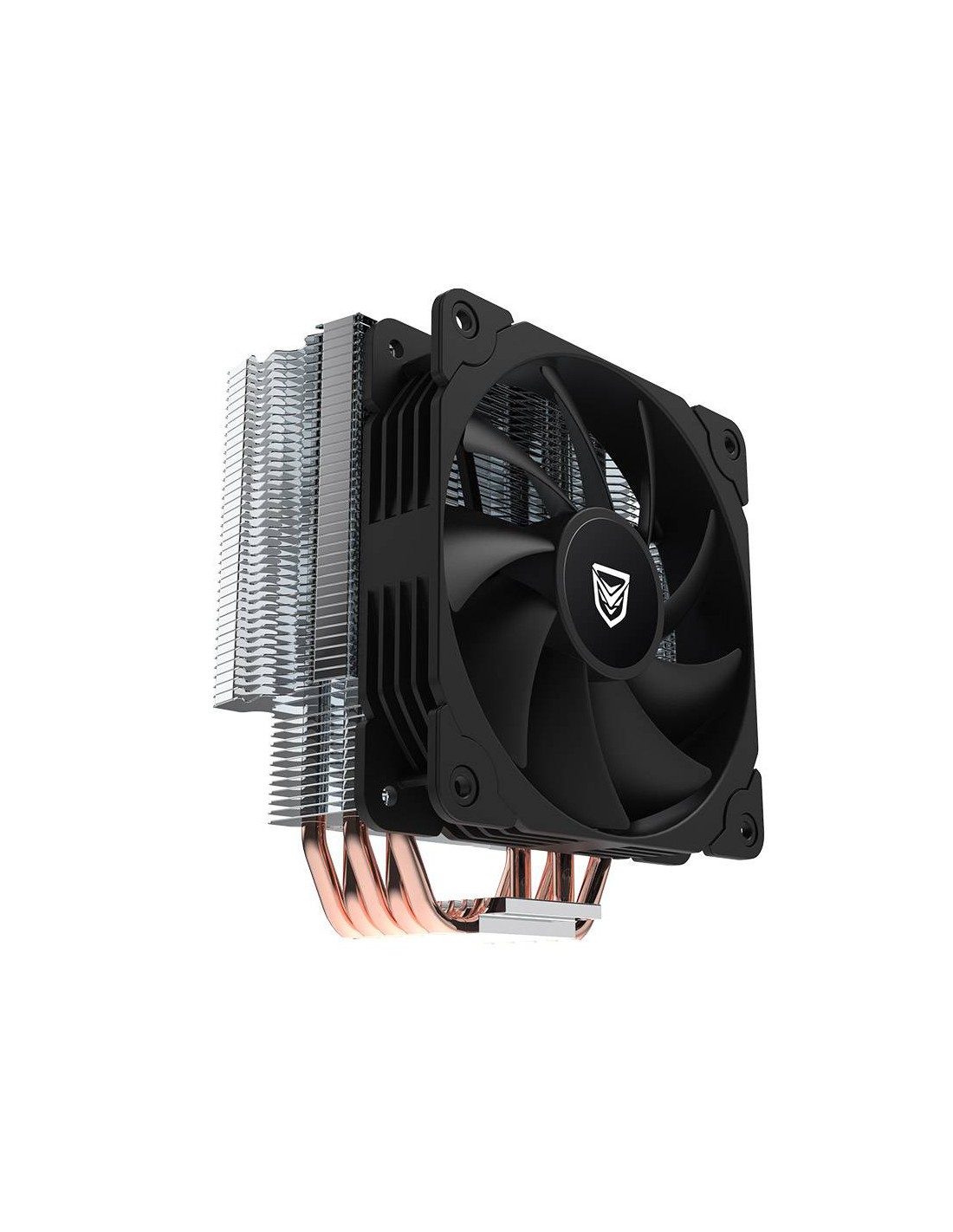

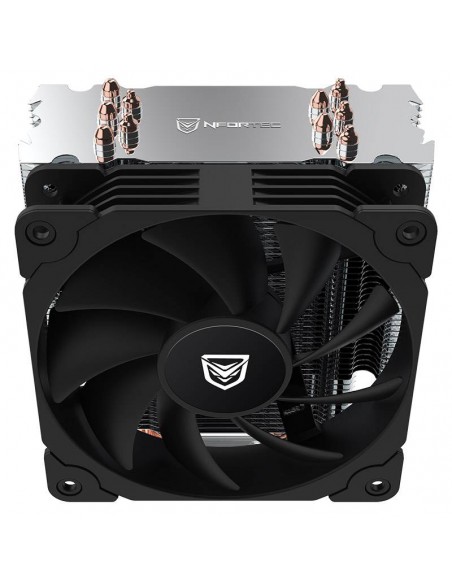

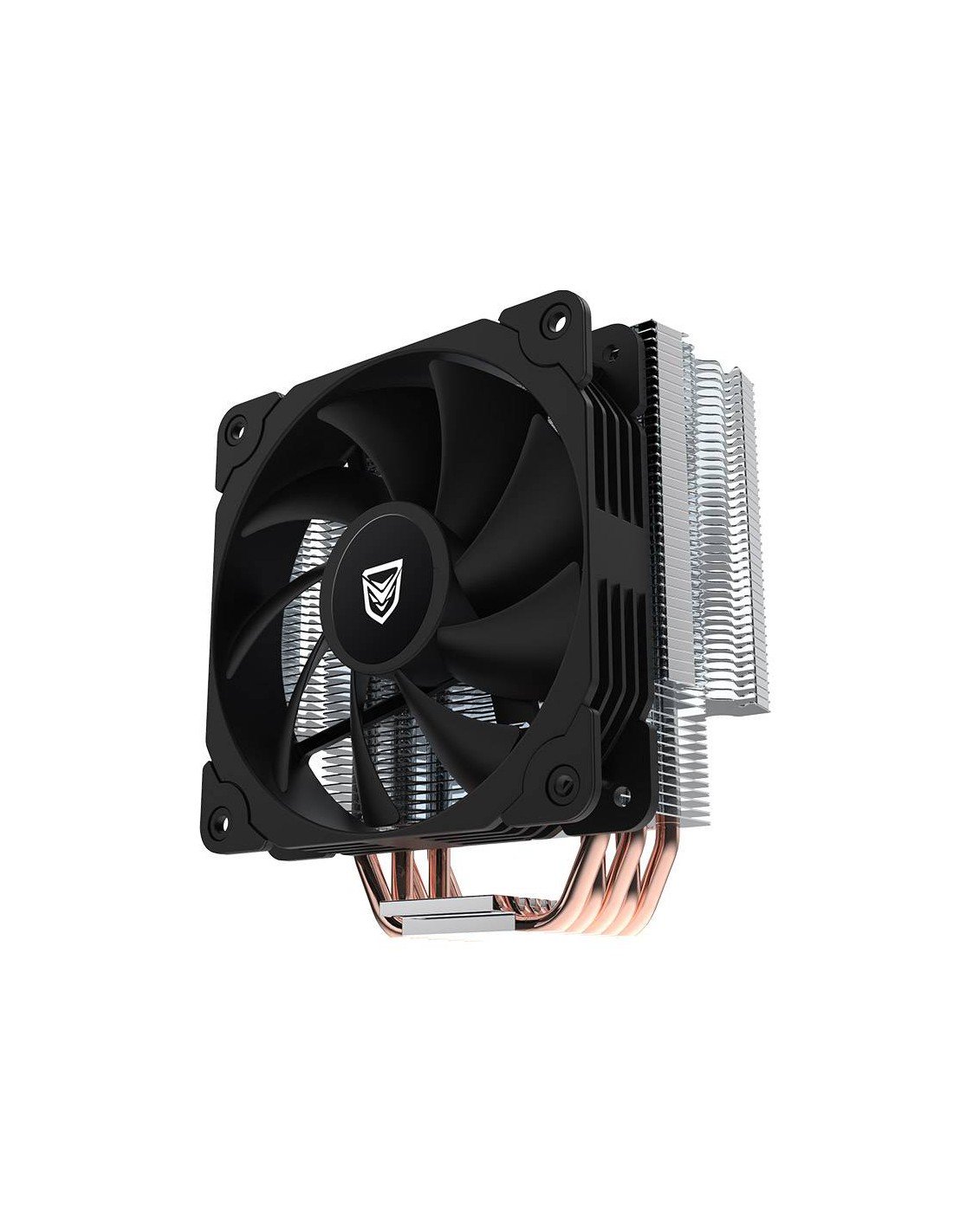

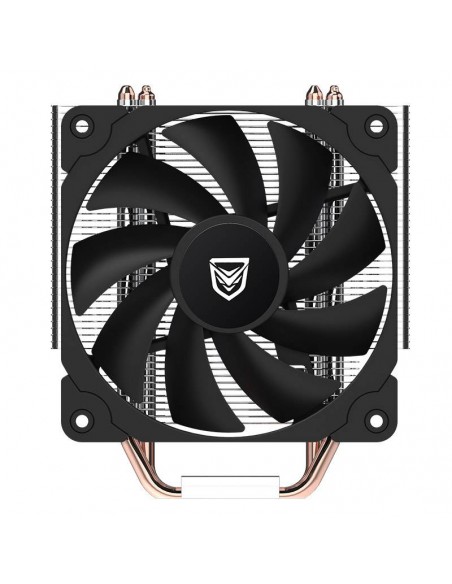

Vela X CPU Air Heatsink

Here comes the revision of our heatsink Vela. Nfortec Vela X is a leap in quality compared to its little brother and comes updated for the new generations of CPU. With the new CPU cooler Nfortec Vela X you will have a dissipation capacity of up to 150W and you can install it quickly and easily.

100% secure payments

Level up

The new CPU heatsink Nfortec Vela X evolves to give your processor the cooling it needs with a focus on performance. Vela X also incorporates an improved heatsink and fan to increase its capacity to adapt to the demands of new processors.

Discreet and functional

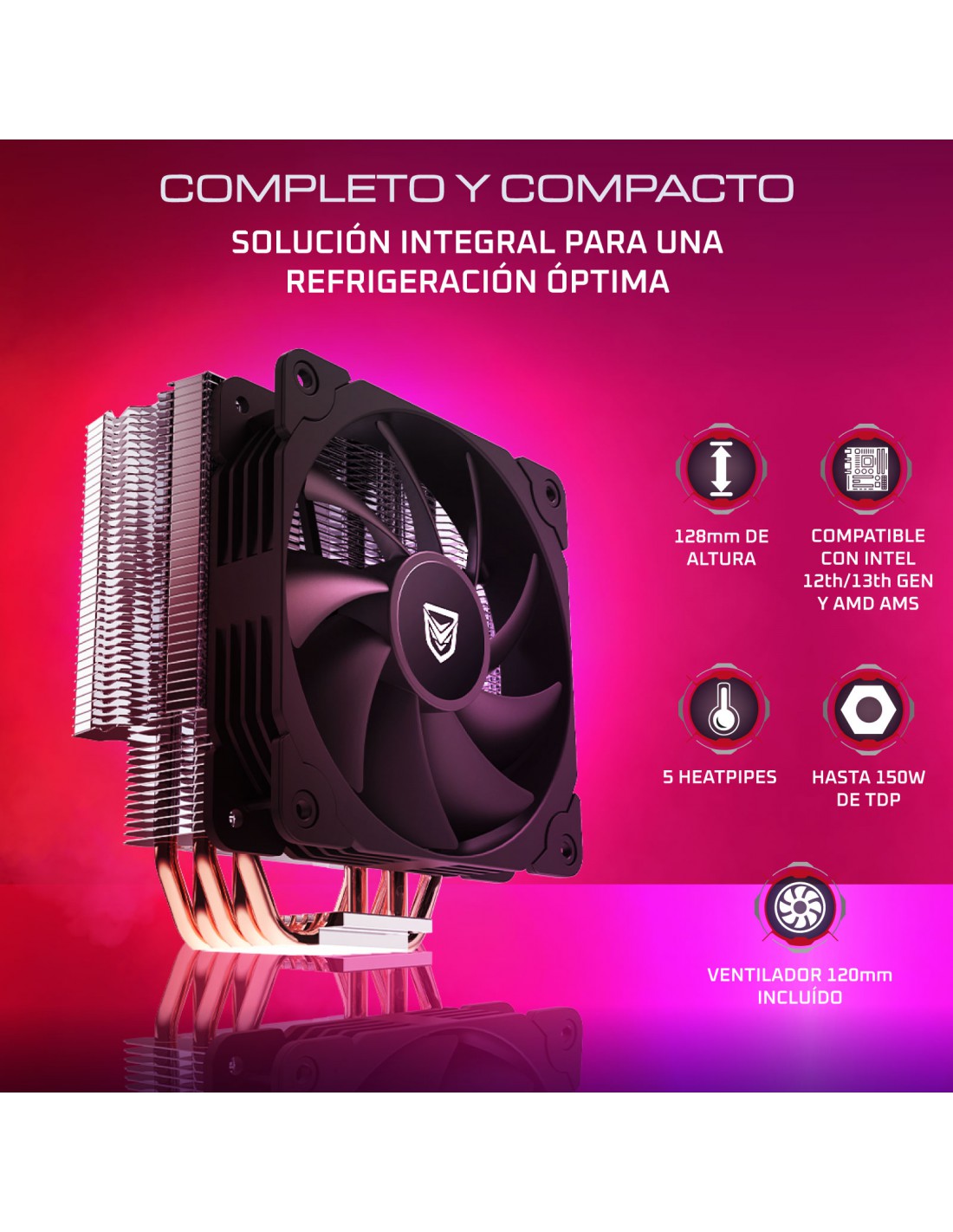

The PC heatsink Nfortec Vela X offers a dissipation capacity of up to 150W TDP max. achieved thanks to its 5 copper tubes and profiled aluminum contact base to ensure the best possible contact with the processor and collect the heat and distribute it throughout its structure. Leaving to its fan up to 52 CFM and 1.84mm H2O pressure the task of moving cool air and keep at all times our unit with the best temperatures.

Increase your performance

The air heatsink Nfortec Vela X is compatible with virtually any configuration thanks to its revised new dimensions of 150mm x 128mm x 75mm and the possibility of adding another fan unit to generate more pressure and maximize its potential. There will be no task you can't overcome with the Vela X computer heatsink on your computer.

Ready to use

The Vela X CPU cooler allows for quick and easy installation. You will be able to assemble it in 3 steps so easy, you will think it was meant to belong to your gaming set-up.

Model	Candle X
COMPATIBLE	Intel → LGA /775/115X/1366/2011/1200
COMPATIBLE	AMD → AM4/AM3+/AM3/AM2+/AM2
Dimensions	128mm x 75mm x 150mm
Weight	0,59Kg
Dimensions Fan	120mm x 120mm x 25mm
Maximum speed (RPM)	800 - 1700 RPM ± 10%
Air flow rate (airflow)	21-52CFM±10%
Static pressure	1.84mm/H2O±10%
Noise generated	16.2~30.8dB(A)±10%
Bearing type	Hydraulic Bearings
Estimated useful life	40.000h
Heat sink tubes	5 Heatpipes Ø6mm
TDP max	150W
PWM	Yes
Voltage	12V 0.4A ±10% 12V 0.4A ±10% 12V 0.4A ±10
Connectors	12v power 4pin (PWM)
Heatsink material	Aluminum, Copper
Content	1x Candle X 1x Installation set for Intel/AMD with thermal paste included

Title Aliexpress: Nfortec Vela X CPU Air Heatsink
Type of Refrigeration: Air
CPU height: 150mm
Fans: x1
Cooling capacity max.: 150W

Brand Nfortec

Reference NF-CPU-VELAX

Model	X Candle
COMPATIBLE	Intel → LGA /775/115X/1366/2011/1200
COMPATIBLE	AMD → AM4/AM3+/AM3/AM2+/AM2
Dimensions	128mm x 75mm x 150mm
Weight	0.59Kg
Fan Dimensions	120mm x 120mm x 25mm
Maximum speed (RPM)	800 - 1700 RPM ± 10%
Airflow	21-52CFM±10% AIRFLOW (AIRFLOW)
Static pressure	1.84mm/H2O±10% Static pressure
Noise generated	16.2~30.8dB(A)±10%
Bearing Type	Hydraulic Bearing
Estimated life of use	40.000h
Heat sink tubes	5 Heatpipes Ø6mm
TDP max	150W
PWM	Yes
Voltage	12V 0.4A ±10% ±10
Connectors	12v power 4pin (PWM)
Heatsink material	Aluminum, Copper
Contents	1x Vela X 1x Installation set for Intel/AMD with thermal paste included

DOWNLOAD MANUAL

1 Reviews

Refrigeración buena

Antes la refrigeración que tenía era de la stock y tras haber puesto la pasta térmica, está refrigeración y haber hecho unas cuantas pruebas puedo decir que la temperatura del procesador baja alrededor de 10°C. He de decir que esta prueba la he realizado solamente en un juego (Calle of Duty Black Ops 3) y, aunque el juego no sea muy exigente en cuando a la CPU, el cambio se nota un poco

By Pabloon 09/11/2021
